MANUAL LIFTING SMV

Image MANUAL LIFTING SMV



MANUAL HOIST





SMV RANGE



Product Description





•Aluminium block, magnesium content less than 0.7 %.Compact- Light- Robust- Anti-corrosion
•Steel alloy gear treated and cut
•Drive load sprocket made in steel
•Anti corrosion load and handling chain
•Range from 250 kg to 30 tons

FOR OTHER CAPACITIES & SPECIAL VERSIONS : ( ATEX spark-proof, food, low temperature : –40°, corrosion-proof, stainless steel chain…)
PLEASE CONSULT US
OPTIONS :
• Load limiter
• Chain bag

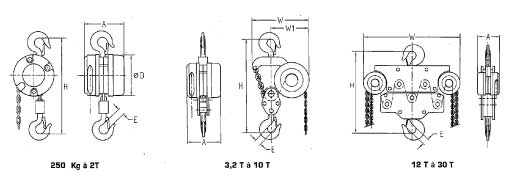

MANUAL HOIST SMV

Weight (kg)
Chains
Dimensions (mm)

Reference
Capacity
With a 3m
Extra
Numbef of
Type of
A
E
D
H
W
W1
for 3 m of
in tons
chain
Meter
Chain
Chain
lifting
Price
000T2503
0,25
7.8
1.6
1
5X15
145
24
126
250
\
\
000T5003
0,5
7.8
1.6
1
5X15
145
24
126
250
\
\
001T0003
1
14.2
2.1
1
7X21
172
25
166
290
\
\
002T2B03
2
22.5
2.9
2
7X21
172
34
\
462
210
147
002T0003
2
29.1
3.6
1
10X30
232
34
234
402
\
\
002T5003
2,5
29.1
3.6
1
10X30
232
34
234
402
\
\
003T2003
3,5
51
5.9
2
10X30
232
40
\
658
350
23
004T0003
4
51
5.9
2
10X30
232
40
\
658
350
230
005T0003
5
51
5.9
2
10X30
232
40
\
658
350
230
007T5003
7,5
69.7
8.2
3
10X30
232
57
\
783
395
250
0010T003
10
93
10.4
4
10X30
232
57
\
800
412
252
0015T003
15
245
16.5
6
10X30
254
60
\
850
1050
\
0020T003
20
310
24.5
10
10X30
274
69
\
935
1240
\
0030T003
30
OTHER CAPACITIES, PLEASE CONTACT US!
Manual Trolley


SMV Range





MANUAL TROLLEY





SMV RANGE



Product Description





•Range from 250kg to 30 tons
•2 versions : by push (SA) or by chain (AA)
•Standardized and easy mounting
•Small pulling effort of translation, solidsteel wheels
on ball bearing.
•Minimal curve radius
•Reliable: standard anti-fall system, standard handling
chain coated with zinc



FOR OTHER CAPACITIES &
SPECIAL VERSIONS:





( ATEX spark-proof, food, low temperature : –40°, corrosion-proof,
stainless steel chain…)
PLEASE CONSULT US



Reference
Capacity in
Weight (kg)
Curve
Beam width
SPACE (mm)
Tons
SA
AA
radius
F
F'
H
J
K
K'
L
M
P
,,,T5003
1/2
7,5
10,9
400
42 to 170
130
205
127
285
200
240
-
62
91,2
,,,T5003
1/2
8,9
12,0
400
172 to 300
130
205
127
415
200
240
-
62
91,2
,,,1T0003
1
7,5
10,9
400
42 to 170
130
205
127
285
200
240
-
62
91,2
,,,1T0003
1
15,2
18,5
500
180 to 300
130
205
137
420
230
270
-
69
106,5
,,,2T5003
2,5
13,6
16,8
500
58 to 178
130
205
137
320
230
270
-
69
106,5
,,,2T5003
2,5
15,2
18,5
500
180 to 300
130
205
137
420
230
270
-
69
137
,,,4T0003
4
28,6
32,1
850
66 to 150
136
211
98
292
290
390
33
100
137
,,,4T0003
4
32,6
35,7
900
155 to 300
136
211
98
441
290
390
33
100
176
,,,5T0003
5
55,9
60,3
1100
82 to 170
145
305
129
326
384
486
40
131
176
,,,5T0003
5
61,6
66,0
1200
180 to 300
145
305
129
468
384
486
40
131
176
,,,6T3003
6,3
55,9
60,3
1100
82 to 170
145
305
129
326
384
486
40
131
176
,,,6T3003
6,3
61,6
66,0
1200
180 to 300
145
305
129
468
384
486
40
177
222
,,,10T003
10
114,8
121,3
1900
110 t0 190
155
305
141
326
542
632
52
177
222
,,,10T003
10
123,5
130,0
2100
200 to 300
155
305
141
468
542
632
52
177
222
,,,12T503
12,5
114,8
121,3
1900
110 t0 190
155
305
141
460
542
632
52
177
222
,,,12T503
12,5
123,5
130,0
2100
200 to 300
155
305
141
560
542
632
52
177
222
,,,15T003
15
124,8
131,3
2100
110 to 212
155
305
132
460
490
630
63
177
222
,,,15T003
15
133,5
140,0
2200
220 to 300
155
305
132
560
490
630
63
177
222
,,,20T003
20
124,8
131,3
2100
110 to 212
155
305
132
530
490
630
63
177
222
,,,20T003
20
133,5
140,0
2200
220 to 300
155
305
132
630
490
630
63
177
222
,,,30T003
30
154,8
161,3
-
110 to 212
155
305
172
530
1000
1140
100
177
222/288
,,,30T003
30
163,5
170,0
-
220 to 300
155
305
172
630
1000
1140
100
177
222/288

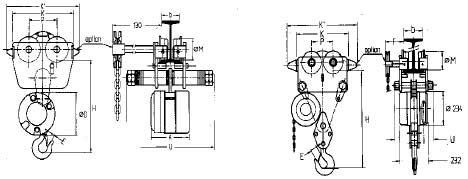

MANUAL LIFTING SMV






MANUAL HOIST-TROLLEY





SMV RANGE



Product Description





•Range from 250kg to 30 tons with all the characteristics of hoists and
trolleys SMV.
•2 versions : by push (SA) or with chain (AA)
•Standardized and easy to install
•Small pulling effort of translation, solidsteel wheels on ball bearing
•Minimum radius of curvature
•Reliable : standard anti-fall system, side-plates widely dimensioned,
standard handling and chain zinc coated



FOR OTHER CAPACITIES &
SPECIAL VERSIONS:





( ATEX spark-proof, food, low temperature : –40°, corrosion-proof,
stainless steel chain…)
PLEASE CONSULT US







Reference
Capacity in
Weight (kg)
Radius of
Beam width
SPACE (mm)
Tons
SA
AA
curvature
A
D
F
E
H
J
K
K'
M
P
,,,0T2503
0,25
13
16,5
400
42 to 170
145
126
130
24
250
285
200
240
62
91,2
,,,0T2503
0,25
14,5
18
400
172 to 300
145
126
130
24
250
415
200
240
62
91,2
,,,0T5003
0,5
13
16,5
400
42 to 170
145
126
130
24
250
285
200
240
62
91,2
,,,0T5003
0,5
14,5
18
400
172 to 300
145
126
130
24
250
415
200
240
62
91,2
,,,1T0003
1
19,8
23,3
400
42 to 170
172
166
130
25
320
285
200
240
62
91,2
,,,1T0003
1
21,3
24,8
400
172 to 300
172
166
130
25
320
415
200
240
62
91,2
,,,2T0003
2
38,5
42
500
58 to 178
232
234
130
34
435
320
230
270
69
106,5
,,,2T0003
2
40
43,5
500
180 to 300
232
234
130
34
435
420
230
270
69
106,5
,,,2T5003
2,5
38,5
42
500
58 to 178
232
234
130
34
435
320
230
270
69
106,5
,,,2T5003
2,5
40
43,5
500
180 to 300
232
234
130
34
435
420
230
270
69
106,5
,,,3T0003
3
75
80
850
66 to 150
232
234
145
40
615
300
324
424
100
137
,,,3T0003
3
79,4
84,4
900
155 to 300
232
234
145
40
615
443
324
424
100
137
,,,4T0003
4
75
80
850
66 to 150
232
234
145
40
615
300
324
424
100
137
,,,4T0003
4
79,5
81,4
900
155 to 300
232
234
145
40
615
443
324
424
100
137
,,,5T0003
5
75
80
850
66 to 150
232
234
145
40
615
300
324
424
100
137
,,,5T0003
5
79,5
84,4
900
155 to 300
232
234
145
40
615
443
324
424
100
137
,,,7T5003
7,5
186
190
1900
110 to 190
232
234
145
47
735
350
542
632
177
222
,,,7T5003
7,5
192,5
196,5
2100
200 to 300
232
234
155
47
735
460
542
632
177
222
,,,10T003
10
204
210
1900
110 to 190
232
234
155
47
770
350
542
632
177
222
,,,10T003
10
210,5
216,5
2100
200 to 300
232
234
155
47
770
460
542
632
177
222
,,,12T503
12,5
242,5
248,5
1900
110 to 190
232
234
155
56
760
350
542
632
177
222
,,,12T503
12,5
249
255
2100
200 to 300
232
234
155
56
760
460
542
632
177
222
,,,15T003
15
463,5
470
2100
110 to 212
254
234
155
56
875
550
490
630
177
222
,,,15T003
15
472,2
478,7
2200
220 to 300
254
234
155
56
875
550
490
630
177
222
,,,20T003
20
489,5
496
2100
110 to 212
254
234
155
86
950
550
490
630
177
222
,,,20T003
20
498,2
504,7
2200
220 to 300
254
234
155
86
950
550
490
630
177
222
,,,30T003
30
594,8
601,3
-
110 to 212
325
234
155
88
1150
550
1000
1140
177
222/288
,,,30T003
30
603,5
610
-
220 to 300
325
234
155
88
1150
550
1000
1140
177
222/288
Manual Hoist SMV




HOIST - TROLLEY SMV HPR (Ultra low headroom)





SMV RANGE



Product Description





Tough and compact lifting equipment with an ultra low headroom that
allow handling loads in very difficult cases. Advance and lifting of the load
by an anti-corrosion chain. Safe and robust device : anti-fall and antirocking
systems. Large range from 1T to 20T.

Ask for more specifications



OPTIONS :





•Overload limiter
•Chain bag
•Beam parking brake
•Curve radius smallest







COMBINED HOIST TROLLEY Type "HPR SMV" safety coef 5
References
Capacity in (T)
Number Of chains
Chain Dimension
Beam width (mm)
Curve
Radius
(m)
Headroom H
(mm)
Weight (kg)
Dimensions (mm)
Lifting 3m
Extra Meter
L
L'
P
G
W
M
E
501T0003
1
2
5 X 15
50-160
4
105
61
4
445
545
220
134
265+b
70
30
5E1T0003
1
2
5 X 15
161-300
4
105
63
4
445
545
220
134
265+b
70
30
502T0003
2
4
5 X 15
50-160
4
152
68
5
445
545
220
134
265+b
70
30
5E2T0003
2
4
5 X 15
161-300
4
152
70
5
445
545
220
134
265+b
70
30
504T0003
4
4
7 X 12
82-190
5
175
109
7
487
587
295
148
295+b
100
33
5E4T0003
4
4
7 X 12
191-300
5
175
115
7
487
587
295
148
295+b
100
33
505T0003
5
2
10 X 30
125-152
10
209
250
8
755
855
490
208
320+b
155
40
5E5T0003
5
2
10 X 30
153-300
10
209
260
8
755
855
490
208
320+b
155
40
508T0003
8
4
10 X 30
125-152
10
245
280
12
755
855
490
208
320+b
155
47
5E8T0003
8
4
10 X 30
153-300
10
245
295
12
755
855
490
208
320+b
155
47
5010T003
10
4
10 X 30
125-152
10
245
280
12
755
855
490
208
320+b
155
47
5E10T003
10
4
10 X 30
153-300
10
245
295
12
755
855
490
208
320+b
155
47
5012T503
12,5
6
10 X 30
125-152
14
300
520
17
937
1027
532
290
505+b
170
56
5E12T503
12,5
6
10 X 30
153-300
14
300
540
17
937
1027
532
290
505+b
170
56
5015T003
15
6
10 X 30
125-152
14
300
520
17
937
1027
532
290
505+b
170
56
5E15T003
15
6
10 X 30
153-300
14
300
540
17
937
1027
532
290
505+b
170
56
5020T003
20
8
10 X 30
125-152
14
340
560
21
937
1027
532
290
505+b
170
75
5E20T003
20
8
10 X 30
153-300
14
340
580
21
937
1027
532
290
505+b
170
75

COMBINED HOIST TROLLEY Type "HPR SMV" safety coef 4
References
Capacity in (T)
Number Of chains
Chain Dimension
Beam width (mm)
Curve
Radius
(m)
Headroom H
(mm)
Weight (kg)
Dimensions (mm)
Lifting 3m
Extra Meter
L
L'
P
G
W
M
E
5E5T0003
5
4
7X21
191-300
5
195
116
7
487
587
295
148
148
100
40
506T3003
6.3
2
10X30
125-152
10
209
250
8
755
865
490
208
208
155
43
506T3003
6.3
2
10X30
153-300
10
209
260
8
755
865
490
208
208
155
43
5012T003
12
4
10X30
125-152
10
280
290
12
755
865
490
208
208
155
56
5E12T003
12
4
10X30
153-300
10
280
305
12
755
865
490
208
208
155
56
5018T003
18
6
10X30
125-152
14
340
540
17
937
1027
532
290
290
170
75
5E18T003
18
6
10X30
153-300
14
340
560
17
937
1027
532
290
290
170
75
5024T003
24
8
10X30
125-152
14
370
570
21
937
1027
532
290
290
170
75
5E24T003
24
8
10X30
153-300
14
370
590
21
937
1027
532
290
290
170
75
HANDLING ON THE FLOOR







HYDRAULIC JACK





HYDROVIC RANGE



ADVANCED TECHNOLOGY :





•Moulded body made in one piece
•Patented design of the hydraulic jack system: no unpriming
and no escape even in horizontal position.



PRACTICAL :





•5, 10 tons jacks usable in every position
•Lifts loads from the floor
•Rotation of the leg of elevation and the pump (360° around
the column)
•Nominal lifting capacity on the leg (30 à 35% more on the
head)



SAFE :





•Great stability on the floor
•Permanent control of the speed of descent of the load with
possible stop at any moment
•Integrated pressure limiter avoiding the overloads

Reference
905T0…
9010T0…
9025T0…
Capacity (Tons)
5 T
10 T
25 T
Lifting race (mm)
206
233
233
Picking up height / leg (mm)
25
25
58
head: (mm)
368
413
470
Lever force (at load full)
38 daN
40 daN
40 daN
Weights
20 kg
27.5 kg
92 kg
Descent speed:
ADJUSTABLE
ADJUSTABLE
ADJUSTABLE
Use temperature:

0°C ~ + 50 °C

0°C ~ + 50 °C

0°C ~ + 50 °C

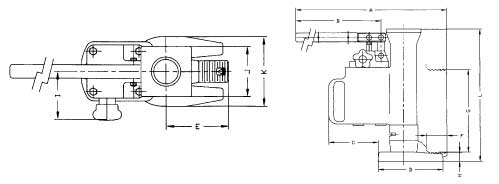

DIMENSIONS: (mm)
A
547/627
582/642
930/1115
B
371/451
371/451
640/825
C
131
134
N A
D
200
196
330
E
115
120
226
F
55
55
90
G
206
233
233
H
25
25
58
I
90
90
90
J
93
93
160
K
130
170
270
L
368/574
413/646
470/703

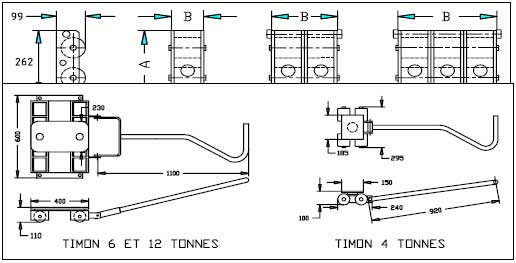

FLOOR HANDLING TRANSVIC






ROLLERS AND TROLLEY SKATES





TRANSVIC RANGE



Complete and modular range :





• Roller skates, linked by a bar if necessary
• Trolley skates which allow the load to be steered (swivelling platform)
• Can be varied according to the type of load being moved
• Rollers fitted on bearings
• Nylon rollers : avoid stamping on the floor
• Option : rollers made of steel or polyurethane



Examples of combinations according to the load distribution :





• 6 tons load : 40-R shaft+2, 20 - 2 rollers
• 12 tons load : 60-R shaft+2, 40 - 2 rollers
• 24 tons load : 120-R shaft+2, 60 - 2 rollers







Device
Reference
Capacity
(T)
Bearing
Surface
(cm2)
Weight
(kg)
Dimensions (mm)
A
B
roller skate
912T0…
2
234
4.6
300
108
914T0…
4
470
10.6
300
216
916T0…
6
700
15.6
300
324
trolley skate
924T0…
4
270
13.7
see scheme
see scheme
926T0…
6
920
48.8
see scheme
see scheme
9212T0…
12
920
59.8
see scheme
see scheme
