Electric & Manual Chain Hoists, Lever Hoists, Trolleys & Beam Clamps ….
Supplied with Test Certificate Per Serial No.
PCT are Licensed by Dubai Municipality in Accordance with local order 52/1990, and Accredited by Dubai Accreditation Centre - Dubai Municipality in accordance with ISO/IEC 17020 for Inspection of Lifting Equipment as type "C" Inspection body Certificate no. 509.
PCT are approved by the LEEA - Lifting Equipment Engineers Association as an Overseas Associate Member Certificate No.797.
Our Quality System is approved in Accordance with BS EN ISO 9001-2000 by Lloyds Register Certificate No. LRQ 0911238/D
Up to 15 ton each hoist is tested to 1.5 times stated capacity. 20 - 25 ton 1.25 times stated capacity.
0.5t
3t - 5t
10t
20t-25t
|
Model |
KHG050 |
KHG100 |
KHG200 |
KHG300 |
KHG500 |
KHG1000 |
KHG2000 |
KHG2500 |
|
|
Capacity (ton) |
0.5 |
1 |
2 |
3 |
5 |
10 |
20 |
25 |
|
|
Standard Lift (m) |
2.5 |
2.5 |
2.5 |
3 |
3 |
3 |
3 |
3 |
|
|
Proof Load ( Kn) |
7.5 |
15 |
30 |
45 |
75 |
150 |
250 |
312.5 |
|
|
Effort Required to Lift Max. Load (N) |
240 |
250 |
335 |
372 |
360 |
382 |
382 |
387 |
|
|
No. of Falls of Load Chain |
1 |
1 |
1 |
1 |
2 |
4 |
8 |
10 |
|
|
Load Chain Diameter (mm) |
5 |
6 |
8 |
10 |
10 |
10 |
10 |
10 |
|
|
Dimensions (mm) |
A |
132 |
151 |
175 |
205 |
189 |
189 |
189 |
200 |
|
B |
148 |
172 |
210 |
255 |
280 |
463 |
900 |
970 |
|
|
C |
345 |
376 |
470 |
548 |
688 |
765 |
950 |
980 |
|
|
D |
35 |
40 |
50 |
55 |
65 |
85 |
106 |
106 |
|
|
K |
23 |
27 |
35 |
39 |
45 |
54 |
80 |
82 |
|
|
Net Weight (kg) |
11 |
12.5 |
19.5 |
35 |
41.3 |
78.5 |
190 |
215 |
|
Supplied with Test Certificate Per Serial No.
PCT are Licensed by Dubai Municipality in Accordance with local order 52/1990, and Accredited by Dubai Accreditation Centre - Dubai Municipality in accordance with ISO/IEC 17020 for Inspection of Lifting Equipment as type "C" Inspection body Certificate no. 509.
PCT are approved by the LEEA - Lifting Equipment Engineers Association as an Overseas Associate Member Certificate No.797.
Our Quality System is approved in Accordance with BS EN ISO 9001-2000 by Lloyds Register Certificate No. LRQ 0911238/D
0.75t,1.5t & 3t
6t
|
Model |
KLH075 |
KLH150 |
KLH300 |
KLH600 |
KLH900 |
|
|
Capacity (tons) |
0.75 |
1.5 |
3 |
6 |
9 |
|
|
Standard lift (m) |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
|
Proof load (Kn) |
11.25 |
22.0 |
45.0 |
90.0 |
135 |
|
|
Headroom(drawm close up) Hmin (mm) |
330 |
400 |
520 |
640 |
770 |
|
|
Effort required to lift max. load (N) |
265 |
295 |
335 |
370 |
420 |
|
|
No. of falls of load chain |
1 |
1 |
1 |
2 |
3 |
|
|
Load chain (mm) |
6X18 |
7X21 |
10X30 |
10X30 |
10X30 |
|
|
Length of lever handle (mm) |
278 |
378 |
388 |
388 |
388 |
|
|
Dimensions (mm) |
A |
148 |
173 |
200 |
200 |
200 |
|
B |
87 |
99 |
112 |
112 |
112 |
|
|
C |
132 |
145 |
199 |
230 |
338 |
|
|
D |
35.5 |
42.5 |
50 |
53 |
67 |
|
|
K |
27 |
33.5 |
40 |
42.5 |
53 |
|
|
Net weight (kg) |
6.9 |
10.9 |
20.7 |
28.1 |
48.9 |
|
6t
|
Model |
Capacity |
I-Beam Width |
A |
B |
C |
H |
N.W |
|
|
t |
mm |
kg |
||||
|
KGT020 |
2 |
76-165 |
361.5 |
302 |
278 |
152 |
29 |
|
KGT030 |
3 |
76-203 |
428.5 |
344 |
338 |
186 |
40 |
|
KGT050 |
5 |
88-203 |
434 |
378 |
393 |
219 |
65 |
|
KGT100 |
10 |
125-203 |
487.5 |
455 |
490 |
275.5 |
103 |
|
KGT200 |
20 |
136-203 |
547 |
642 |
622 |
315 |
245 |
|
KGT300 |
30 |
|
|
|
|
|
|
6t
|
Model |
Capacity |
I-Beam Width |
A |
B |
C |
H |
N.W |
|
|
t |
mm |
kg |
||||
|
KPT005 |
0.5 |
64-140 |
230 |
212 |
198.5 |
113 |
7 |
|
KPT010 |
1 |
64-140 |
254 |
255 |
231.5 |
128 |
12 |
|
KPT020 |
2 |
76-165 |
294 |
302 |
278 |
152 |
22 |
|
KPT030 |
3 |
76-203 |
344 |
344 |
338 |
186 |
30 |
|
KPT050 |
5 |
88-203 |
360 |
378 |
393 |
219 |
55 |
|
Model |
KBC010 |
KBC020 |
KBC030 |
KBC050 |
KBC100 |
|
|
Rated Load |
t |
1 |
2 |
3 |
5 |
10 |
|
Test Load |
kN |
19.6 |
39.2 |
58.8 |
98 |
196 |
|
Flange Width |
mm |
75-220 |
75-220 |
80-320 |
80-320 |
90-320 |
|
Dimensions(mm) |
Max.A |
260 |
260 |
354 |
354 |
365 |
|
Min.B |
180 |
180 |
235 |
235 |
320 |
|
|
Max.B |
360 |
360 |
490 |
490 |
505 |
|
|
C |
64 |
74 |
103 |
110 |
120 |
|
|
D |
5 |
6 |
8 |
10 |
12 |
|
|
E |
215 |
215 |
260 |
260 |
280 |
|
|
Max.F |
155 |
155 |
225 |
225 |
235 |
|
|
Min.F |
102 |
102 |
140 |
140 |
170 |
|
|
Min.G |
25 |
25 |
45 |
45 |
50 |
|
|
H |
22 |
22 |
24 |
28 |
40 |
|
|
Net Weight |
kg |
4.5 |
5 |
10.5 |
11 |
16 |

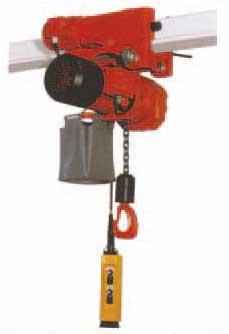

Special Enclosures standard hoists can be completely weatherproofed. Special models are also available for use under adverse conditions including . EExd IIBT3 or EExd IICT4.
OPTIONS
-Long life galvanized alloy load
chain.
-Spark resistant specification.
-Offshore corrosion protection.
-Articulated trolleys available on all models. To suit Min Radii.s
|
Model |
Capacity
Kg |
Chain |
Lifting m/min |
Output
(kW) |
Duty Cycle
% |
Current
A |
FEM |
Load Chain
Mm |
Low headroom Dimension stationery hoist |
Weight Kg |
|
|
PECH-050 PECH-063 PECH-080 PECH-100 PECH-120 PECH-150 PECH-200 PECH-250 |
500 6300 8000 10000 12000 15000 20000 25000 |
1 1 2 2 2 3 4 5 |
5.4/1.35 5.4/1.35 2.8/0.70 2.8/0.70 2.8/0.70 1.8/0.45 1.35/0.35 1.1/0.27 |
5.5/1.4 6.0/1.5 4.0/1.0 5.5/1.4 6.0/1.5 5.5/1.4 5.5/1.4 5.5/1.4 |
40 30 60 40 30 40 40 40 |
12.5/6.4 13.8/7.0 10.0/4.3 12.5/6.4 13.8/7.0 12.5/6.4 12.5/6.4 12.5/6.4 |
1 Am 1 Bm 2 m 1 Am 1 Bm 1 Bm 1 Bm 1 Bm |
16 x 45 16 x 45 16 x 45 16 x 45 16 x 45 16 x 45 16 x 45 16 x 45 |
721 721 940 940 940 1130 1170 1270 |
260 260 350 350 350 450 565 605 |
6.0 6.0 11.7 11.7 11.7 17.4 23.1 28.8 |
|
Model |
Chain |
Load Chain |
Maim Dimensions in mm |
||||||||||
|
A |
A1 |
B1 |
B2 |
B3 |
C |
C1 |
D |
H |
M |
M1 |
|||
|
PECH-050 PECH-063 PECH-080 PECH-100 PECH-120 PECH-150 PECH-200 PECH-250 |
1 1 2 2 2 3 4 5 |
16 x 45 16 x 45 16 x 45 16 x 45 16 x 45 16 x 45 16 x 45 16 x 45 |
635 635 635 635 635 760 940 1120 |
412 412 486 486 486 567 640 710 |
273 273 273 273 273 273 273 273 |
517 517 517 517 517 517 517 517 |
105 105 80 80 80 80 80 80 |
70 70 148 148 148 157 185 205 |
993 993 1075 1075 1075 1100 1230 1360 |
52 52 61 61 61 61 71 76 |
755 755 940 940 940 1130 1170 1270 |
40 40 49 49 49 55 55 76 |
45 45 63 63 63 67 67 85 |
